Sparkfun - L298N breakout board + L298N chip

SOLD AS A KIT SOLDERING REQUIRED

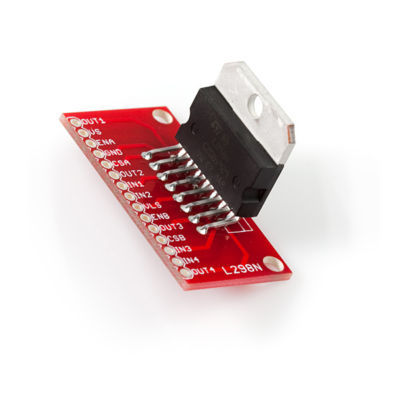

This is a breakout board for the L298N and the L298N full-bridge dual motor driver; which comes in a staggered, Multiwatt package.
All pins of the L298N are broken out to a 15-pin 0.1" pitch header. Two mounting holes are also provided.
The LN298 is a high voltage, high current, dual full-bridge motor driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors.
Comes in a staggered, 15-lead Multiwatt package.
* Operating supply voltage of up to 46V
* 4.5-7VDC logic supply voltage
* Total DC current of up to 4A
* Logical '0' input up to 1.5V (high-noise immunity)
