Dorc zx-1 micro non-contact interferometer bt

DORC ZX-1 MICRO NON-CONTACT INTERFEROMETER BT
DORC's ZX-1 micro is the world's first portable non-contact interferometer designed specifically to inspect and measure the surface topography of fiberoptic connectors. The hand-held (HH) unit has a built-in LCD monitor to provide inherently eye-safe viewing of potentially "live" connectors. Conventional direct viewing microscopes usually contain laser filters to absorb or reflect the invisible laser radiation. However, it is impossible for the operator to know if such precautions are in place and providing effective protection.
In the inspection mode, the operator will clearly see any contamination or surface scratches on the ferrule or fiber endface. Instantly switching to interferometric mode reveals the connectors surface topography. Defects in the polished shape including radius of curvature, apex offset, angle and undercut or protrusion can all be evaluated.

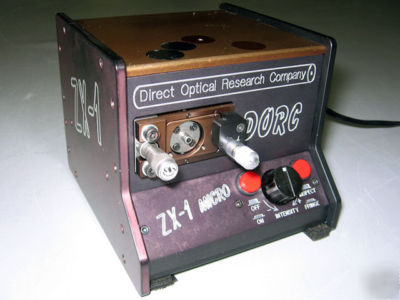

The ZX-1 micro is a combined "interferometer/inspection" bench-top system that displays through an external monitor. The ZX-1 offers high magnification and incorporates high-resolution optics, providing extremely bright and sharp images of both PC and APC fiberoptic connectors.
* Display: External monitor (not included)
* Principle of Operation: Michelson Interferometer (non-contact system)
* Operating Wavelength: 665nm
* Magnification: X850 combined optical and electronic magnification using the 12" external monochrome monitor
* Power: A worldwide supply is included. 100-120V and 210-250V AC 50/60Hz auto sensing
* Connector Holder: Universal connector chuck with tilt - accepts most PC or APC connectors with a 2.5mm (or optionally a 1.25mm) ferrule
