Nib 3.5" color tft patient monitor ecg,SPO2,pulserate, p

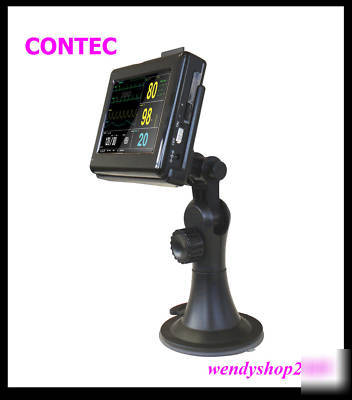

3.5" Color TFT Patient monitor
PM-60D Handheld Patient Monitor ( ECG,Spo2, NIBP,Pulse Rate )
Routine Check Mode and Continuous Monitoring Mode
Data Graph and Trend Table Review
Convenient operation by touch screen
Large SD card memory for more than 2000 patient casesstorage
Sync with PC based Sofrware (WinXP and WinVista)
Display Mode:Standard face, Waveform face, SPO2 view, ECG view, BigNum view
Indicator:Power indicator light, Alarm sound, Pluse tone
Interface:One dual-purpose socket for connecting sensors and communication cables
Battery:Builtin Li-Polymer, 2 hours for charging, 3 hours
for continous working.10 hours for standby mode
Trend Graph:Resolution from 1s, 5s, 10s. Maximum time 96 hours.
Trend Table:Resolution from 1s, 5s, 10s. Review up to 1000 items.
Alarm:Ajustable High and Low limits. Three level audible and vistual alarm
User Configuration:All the color of parameters and waves can be set according to user's willing
Meet the requirment of IEC60601 series
Type of Protection:Class II with internal electirc power supply
Dimention:92(W)x82(H)x22(D)mm
Neonate ,Pediatric and Adult
Accuracy: 2%(70%~100%, Adult/Pediatric, non-motion)
3%(70%~100%, Neonate, non-motion)
Lead selection: I, II, III, AVR, AVL, AVF, V
Accuracy: 2bpm or 2%, which is greater
S-T segment detection, range: -2.0mv ~ +2.0mv
Arrhythmia analysis: 13 kinds of arrhythmia
Measurement Range:25 ~ 260mmHg
Atuo Measure Interval: 5, 10, 15, 30, 45, 60, 90 minutes
Overpressure Protection: 300mmHg
