20"X80" okamoto "column-type" surface grinder #21040

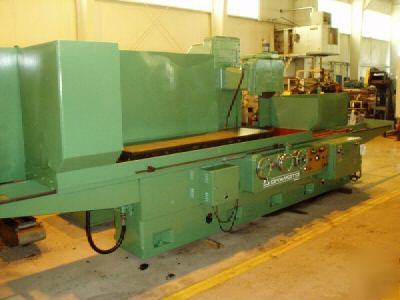

20" X 80" OKAMOTO "COLUMN-TYPE" HYDRAULIC-FEED
New 1977, Serial No 1702. Model PSG205,
20" x 80" Electro-Magnetic Chuck
Hyraulic Overhead Wheel Dresser
Coolant System w/Dust Separator
Table Working Surface, W X L........... 20" X 80"
Grinding Width Capacity, Maximum....... 20"
Grinding Length Capacity, Maximum...... 80.70"
Height Under 20" Grinding Wheel........ 23.4"
Column Cross Travel.................... 20.86"
Grinding Wheel Diameter, Standard...... 20"
Grinding Wheel Width, Standard......... 2"
Grinding Wheel Diameter................ 5"
Table Longitudinal Feeds, Range........ 1 TO 100 FPM
Column Cross In-Feeds, Range........... .20 TO 1.37 IPS
Spindle Vertical Feeds, Range.......... .0002 TO .002 IPS
Grinding Wheel Spindle Motor........... 10 HP/1150 RPM
Power Elevation Motor.................. 1/2 HP
Floor Space Required, L X D............ 23' X 9'1"
Weight, Approximately.................. 19300 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $29,500.00
