Atten ADS1062C 60 mhz 2 channel digital oscilloscope

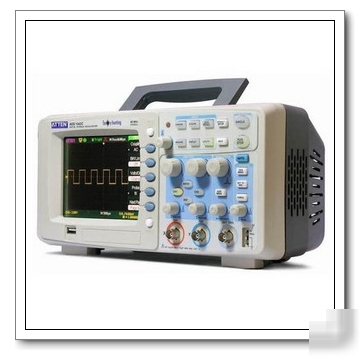

ATTEN ADS1062C 60 MHz 2 Channel Digital Oscilloscope
ADS1000 series digital storage oscilloscopes combine mature and steady hardware configuration, high-powered digital signal processing technology and functionality concepts with a mainstream display interface and the operation panel. In our design we did not attempt to match the specifications and usability of other comparable products currently on the market, but rather to exceed them in every respect, often outperforming same level products internationally.
The ADS1000 series, with its intuitive logical and convenient user interface and attractive price is very affordable
ADS1000 series products have rich trigger modes: Edge, Pulse, Video, Slope, Alternative and Delay trigger mode, which will satisfy with users more extensive needs. Alternative trigger mode is usually used to observing two non-correlated signals at the same time and users can select different trigger mode for two channels, which is a kind reproduction that analog oscilloscope function in the digital oscilloscope.
FFT WAVEFORM SPLIT DISPLAY FUNCTION
FFT waveform and its Channel waveform can display on split screen at the same time. In split display mode, the screen is divided into two parts and each part is divided eight divides in vertical direction. That is similar to under the entire screen pattern simultaneously to observe two waveforms. This way will make users observe waveforms to be clearer and convenient.
ADS1000 series use pop-up menu display mode. The menu may hide as necessary make waveforms display on 12 divides full screen. Comparing with other same level digital oscilloscopes, this kind of pattern is more flexible, the user operation is more convenient and users can observe waveforms clearly.
ADS1000 series can auto measure thirty two parameters, which is most in the same level digital oscilloscopes. Auto measure function can eliminate user error consumedly, and users will measure parameters what they need faster and more accurately using it. ADS1000 series also have an all measurement function that displays all the waveform parameters on the screen according to measure kinds, and users can ready measure parameters value expediently. So ADS1000 series are your most perfect measure tools in current market.
ADS1000 series provide a digital filter function, and users can use it setting upper limit and lower limit of frequency to reduce signal noise and filter error signal. So they can observe their interested signals distinctly, which will advance users work efficiency consumedly.
Using this function, Users can continue record data of their need signals as the form of frame. Waveform recorder can record input waveform from CH1 and CH2, with maximum record length of 1500 frames. This record behavior can also be activated by the pass/fail test output, which makes this function especially useful to capture abnormal signals in long term without keeping an eye watching it.
Window: Hanning, Hamming, Blackman Rectangular
Off, 1sec, 2sec, 5sec, Infinite
Classical, Modern, Tradition, Succinct
305mm x 154mm x133mm, about2.3kg
Support USB flash drive storage
Support PictBridge compatible printers and PC Remote control
