Digital sound decibel level meter theatre studio audio

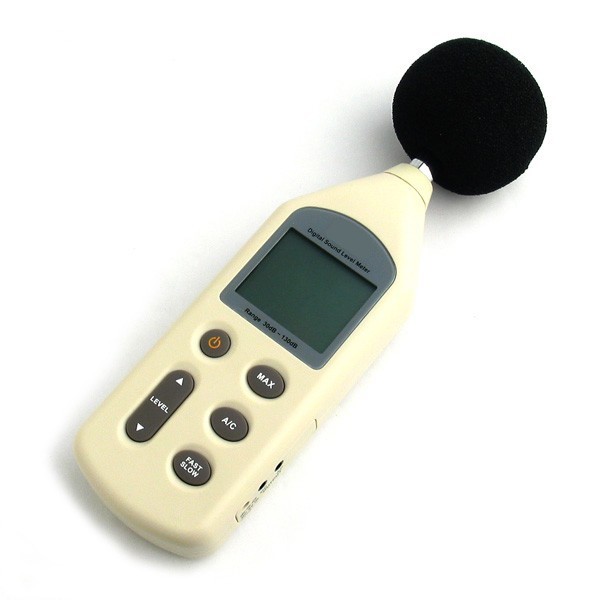

Digital Sound Decibel Level Meter Theatre Studio Audio
The meter has been designed to IEC 651 TYPE2 and ANSI S1.4 TYPE2 for sound level meters and gives an instantaneous measurement reading between 30dB and 130dB.
Features include the ability to change between the fast and slow settings with the flick of a switch to monitor either an average or the peak sound levels present in the environment and A and C weighting for the measurement of different levels. A covers general sound level measurements whilst C is for checking the low frequency content of noise.
* Designed to IEC 651 TYPE2 and ANSI S1.4 TYPE2 for sound level meters
* Reads instantaneously and accurately
* Measures from 30 dB to 130 dB
* 2 equivalently weighted sound pressure levels - A and C
* Fast and slow dynamic characteristic modes
* AC and DC signed output for frequency analyzer level recorders, FFT analyzers, graphic recorders etc
* Supplied with sturdy, padded storage case for safe transportation whilst inbetween jobs
* Accuracy: +/-1.5 dB (under reference conditions)
* Frequency range: 31.5 Hz to 8.5K Hz
* Measurement level: 30 130 dBA, 35-130 dBC
* Frequency weighting: A and C
* Digital display: 5 digits, 0.1 dB resolution, 0.5 secretary display
* Bar graph: 50 dB scale at 1 dB step for monitoring current sound level pressure, display period: 50 mS
* AC output: 0.707 Vrms at FS output impedance approx. 600
* DC output: 10 mV / dB output impedance approx. 100
* Microphone type: 1/2 inch Electret Condenser
* Power life: approx. 30 hours continuous use
* Self calibration time: 10 seconds (every time unit is turned on)
* Operating temperature: 0 C to 40 C
* Operating humidity: 10% to 80% RH
* Storage temperature: -10 C to 60 C
* Storage humidity: 10% to 70% RH
* Unit dimensions: 7 x 25 x 3.5cm (w x l x d)
* Screen dimensions: 4.5 x 4.7cm
* Weight (excluding batteries):238g
The digital sound level meter is brand new, boxed and unused. It is supplied with a heavy duty, padded carry case, microphone wind screen, instructions and battery.
