Hp 8904A multifunction synthesizer dc 600KHZ opt 001

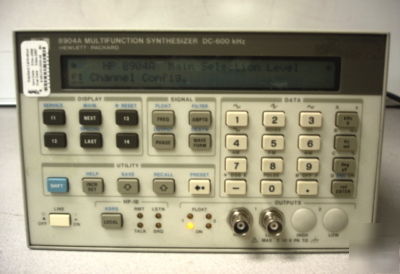

An HP Agilent 8904A Multifunction Synthesizer DC 600KHz with option 001
The Agilent 8904A multifunction synthesizer generates accurate sinewaves from 0 Hz to 600 kHz with 0.1 Hz resolution. The 8904A also has five other standard functions: square, triangle, ramp, from 0 Hz to 50 kHz plus dc, and Gaussian white noise. All waveform values in the 8904A are digitally calculated in real time by Agilent Technologies' Digital Waveform Synthesis IC yielding 12-bit digital accuracy. Full GPIB programmability is also included standard on the 8904A.
* Sine to 600 kHz, square, ramp, triangle to 50 kHz
* 12 bit direct digital synthesis
* Tone, DTMF, digital, Hop Ram sequence modes
* AM, FM, Phi-M, DSBSC, and pulse modulation
* Unit to unit phase synchronization
