New innovair low flow duct smoke detector

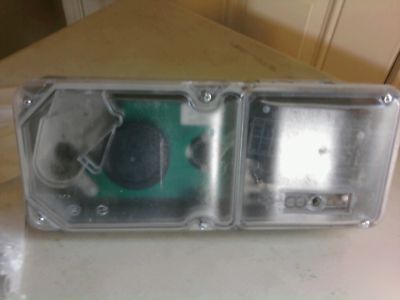

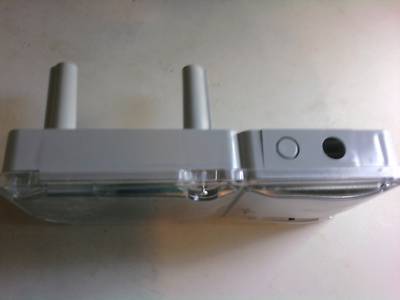

Never Used System Sensor Innovair Low Flow Smoke Detector Model No. DH100ACDCLP

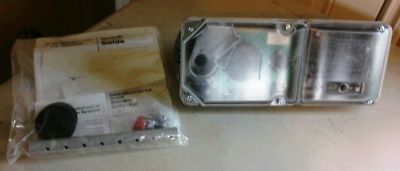

Includes all original accessories and instruction manuals
This is a conventional 4-wire photoelectronic duct smoke detector with low-flow technology. Used in the field of HVAC Systems Monitoring
-22 to 158 F (-30 to 70 C)
10% to 93% relative humidity non-condensing
100 to 4000 ft./min. (0.5 - 20.32 m/s)
5.5"W x 14.375"L x 2.75" D (14 cm x 37 cm x 7 cm)
Alarm auxiliary contacts (DPDT):
2.0A @ 30 VAC/DC (0.6 power factor)
20-29 VDC; 24 VAC 50-60 Hz; 120 VAC 50-60 Hz; 220/240 VAC 50-60 Hz
270 F max. @ 20-29 VDC;24VAC 5D-60Hz
3.0 VDC min. @ 20-29VDC; 2.0 VAC min. @ 24 VAC; 10 VAC min. @ 120 VAC; 20 VAC min. @ 220/240 VAC
15 mA @ 20-29 VDC; 35 mA RMS @ 24 VAC; 25 mA RMS @ 120 VAC; 15 mA RMS @ 220/240 VAC
70 mA @ 20-29 VDC; 125mA RMS @ 24 VAC; 35mA RMS @ 120 VAC; 25mA RMS @ 220/240 VAC
