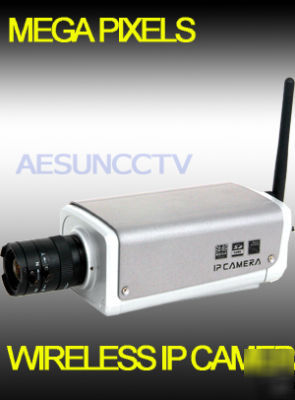

Cctv h.264 wireless 2 mega pixels ip network camera sd

2.0 mega pixels Wireless IP Cameras are designed for high definition network surveillance based on Micron CMOS sensor with high-performance multimedia processor. It adopts the embedded Linux OS. It supports H.264 Main Profile, Baseline Profile, MJPEG, JPEG and so on video encoding standards. It has the advanced mega pixel technology with SD card storage and picture snapshot. It can communicate with IPTV terminal devices. It is a set of video capture, image processing, video transmission, video storage, video management functions in one type of high-definition, high-performance network camera. The design concept is all in one (highly integrated), Ready to go (Plug and Play), which greatly facilitates the user to install, use and maintenance. It is mainly to the requirements of higher-resolution images of high-end surveillance market demand for applications, including, highways, banking, telemedicine, security checkpoints and other areas.
1.It has High-performance Multimedia Processor, SOC single-chip, high speed video frequency processor with built-in ARM9+DSP.
2.High-sensitivity and high signal-to-noise ratio (SNR)
3.The Optimized H.264 Main Profile@Level 3 compression algorithm is better to satisfy the transmission of High Definition video at low network bandwidth.
4.Max resolution is 1600*1200 real-time encoding.
5.It can support 10 users to visit at the same time.
6.Built-in Web Sever to realize remote surveillance, controlling and setting via IE
7.It supports upgrade by remote control.
8.It supports local or network storage. It is built-in SD slot. And it was integrated several network storage protocols
9.It supports privacy protection mode, we have different way to control the camera to open the privacy protection or not. When the privacy protection open, the remote surveillance and recording will be closed.
10.It supports dynamic IP address, LAN, Internet (ADSL and Cable Modem)
11.It supports bi-directional real time transmission of audio and broadcast.
12.It has network self-adapting technology to adjust video frame rate automatically
according to the network bandwidth.
13.It provides video loss, motion detection and sensor alarm functions.
1 x 2.0 MEGA Pixel Wireless IP Camera(AE-WN100P)
1/3 inch CMOS, Minimum illumination 1 Lux
Video resolution adjustable by IE and SDK
1600 x 1200, 1280x960,1280 x 720, 800 x 600
Video parameters adjustable by IE and SDK
Brightness, hue, contrast, saturation and image quality
Video Streaming or Audio &Video composite Streaming
Video Frame Rate adjustable by IE and SDK
1600 x 1200/1 - 15 fps,1280 x 960/1 - 25 fps,1280 x 720/1 - 25 fps,800 x 600/1 - 30 fps
Video Compression Bit rate adjustable by IE and SDK
1channel,linear input, Input Impedance:1KOhms
TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UpnP, RTP, RTCP, 3GPP
10Base-T/100Base-TX -Ethernet port,WiFi(802.11b/g)WiFi interface,1 RS485
1channel on/off input, support NO (open) or NC (closed) ,RFID technology, link with wireless detectors
1 channel on/off output, 120VAC 1A/24VDC 1A
This is real picture get from IP Camera
