Ferguson / camco intermittor indexer w/reducer & drive

Ferguson/Camco Intermittor Indexer
with Speed Reducer & Drive Motor

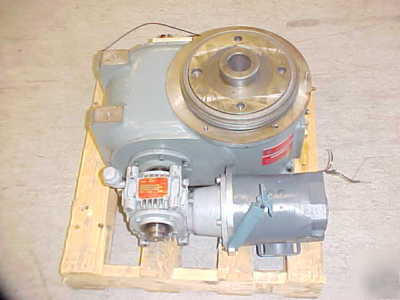

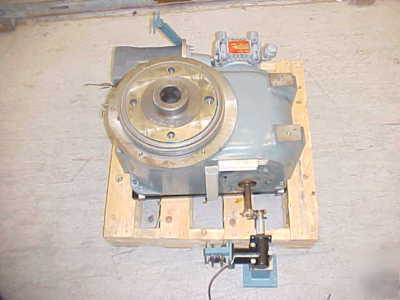

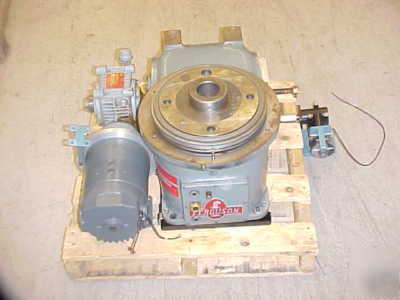

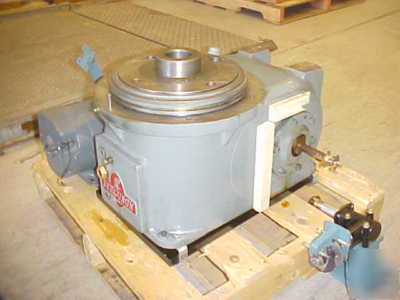

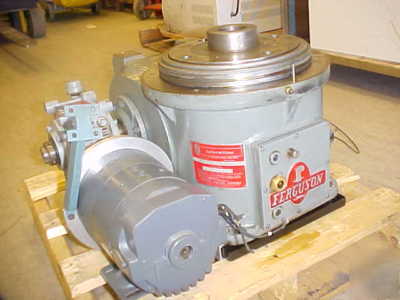

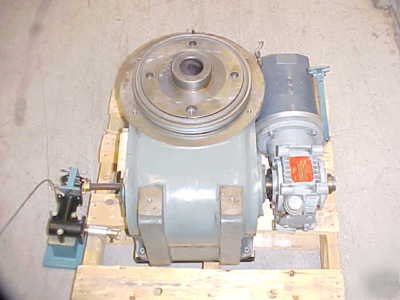

This is a Camco Ferguson Intermittor Indexing Drive. This unit is used to provide fast indexing of tables in an industrial environment. The model number is 16x2 FM100-90/90 RH Cam. It also has a 20/1 Cone Drive Speed Reducer Model MSSU-7200C AJDW attached which is driven by a electric motor. This unit was removed from working system.

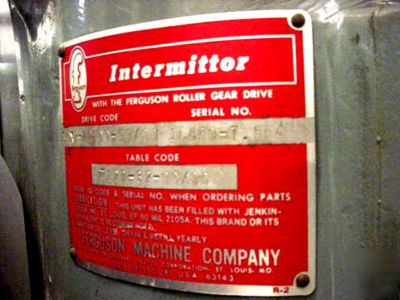

Ferguson Intermittor Drive Code 16x2-FM100-90/90
Reducer Mfg-By / Cone Drive Gears - Div. of Michigan Tool Co. / Detroit
Reducer Ratio 20/1 rpm 1750 CL3 H.P. or OT. 1.05
The drive motor on the speed reducer is in the way, preventing me from getting a good picture other than what I m sending to you here. Regardless, I took a close look and recorded the numbers for you.

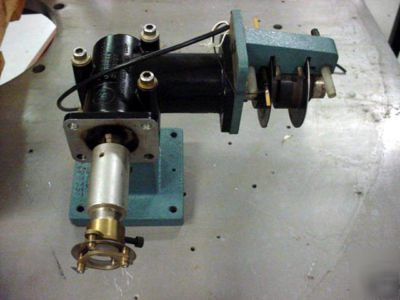

Also, not mentioned in the ad is a index control (I m not sure what it s called) as pictured.

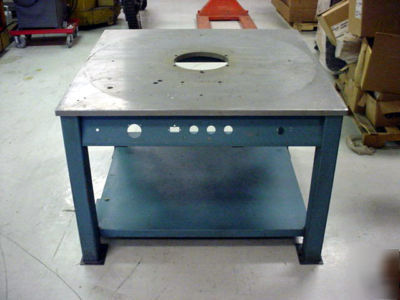

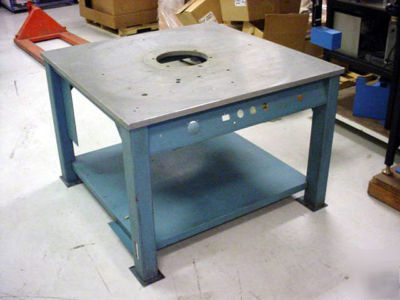

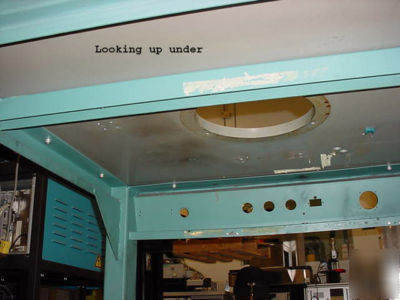

One last note. I have also included pictures of the table this indexer came out of. If you have interest in it or if it can fit into your project, it might prove as a means of cutting your cost. It s a fine work table and the indexer mounts in to it up from underneath. Let me know if you need further information. Thank you for your interest. Gary K.
