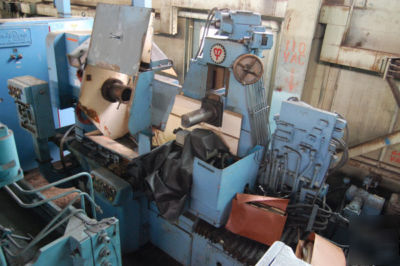

Mi-geargrind fully-auto internal gear grinder #23921

#GGI-16FA MICHIGAN-GEARGRIND FULLY-AUTOMATIC
Serial No. 4155, Model GGI-16X3FA
Fully Automatic Wheel Dressing
Maximum Internal Diameter Ground....... 16" (400mm)
Minimum Internal Diameter Ground....... 2.5" (65mm)
(fixture & part)....................... 21" (525mm)
Maximum Facewidth Ground (Nominal)..... 3"(75mm)
Max./Min. Number of Teeth Ground....... 220/3
Maximum Wheelhead Travel............... 14" (355.6mm)
Maximum Table Stroke................... 28" (711.2mm)
Diametral Pitch Range Ground........... 64 to 6 DP
Index Plate Diameter................... 16" (400mm)
Motor Voltage.......................... 220-440
Overall Dimensions, L x W.............. 11'x 5'2"
Overall Height......................... 7'4"
Weight Approximately................... 10,000 LBS
