Mitutoyo 226-137 screw thread micrometer w/ anvils

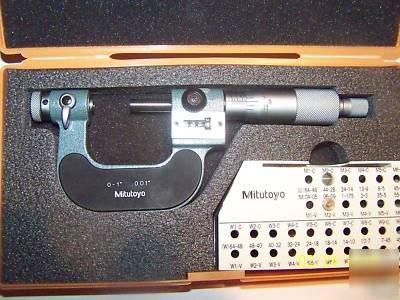

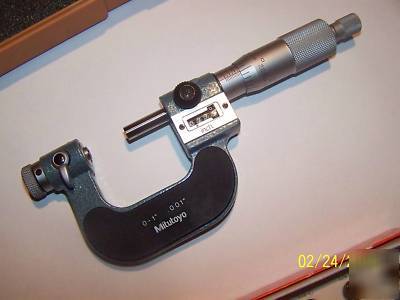

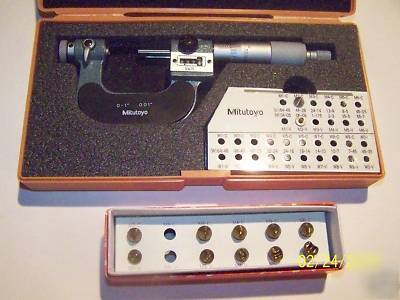

WHAT WE HAVE HERE IS A NICE (LIKE NEW) MITUTOYO SCREW THREAD MICROMETER 226-137 WITH A SET OF MITUTOYO ANVILS 126-800, THIS MICROMETER IS IN AS NEW CONDITION, USED VERY LITTLE NO ENGRAVING OR MARKS, ONLY ONE PAIR OF THE ANVILS HAVE BEEN USED (M2-C & M2-V) THE OTHER FIVE PAIR'S ARE UN-USED STILL SEALED AND IN THERE ORIGNAL BOX.
I HAVE INCLUDED SOME INFORMATION FROM THERE WEB PAGE BELOW FOR YOU HOW EVER IF YOU HAVE ANY OTHER QUESTIONS PLEASE FEEL FREE TO ASK.
MITUTOYO Screw Thread Micrometer - Series 226 TMC-1" K

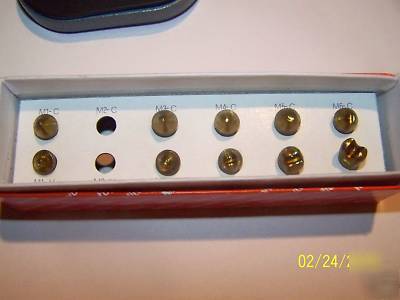

Anvils 126-137 are for Unified threads (60 deg) & Metric
* M1-C/M1-V (Unified 64-48 Metric 04-05)
* M2-C/M2-V (Unified 44-28 Metric 06-0.9)
* M3-C/M3-V (Unified 24-14 Metric 1-1.75)
* M4-C/M4-V (Unified 13-9 Metric 2-3)
* M5-C/M5-V (Unified 8-5 Metric 3.5-5)
* M6-C/M6-V (Unified 4.5-3.5 Metric 5.5-7)
Interchangeable tips for measuring various screw threads
The 326 series provides digital readout to 0.00005"/0.001mm and can be linked to the SPC system
Provided with a ratchet stop for constant force
Provided with a standard bar for zero point adjustment
Interchangeable tips are optional
60 degree V-Anvil and conical spindle are made of high-grade special steel, hardened and precision ground
Furnished complete with fitted carrying case
Digimatic functions same as the digimatic outside micrometers
Interchangeable V-Anvil Type for Measuring Pitch Diameter
An easy and accurate way to measure pitch diameters is with the new Digimatic Screw Thread Micrometers from MITUTOYO. These electronic micrometers are ready to accept MITUTOYO's optional anvils (pairs). Each anvil can be used for both metric and unified external threads. The correct pair of anvils must be selected and inserted in the hollow micrometer spindle and anvil. The micrometer anvil is fully adjustable by the knurled knob located on the anvil side of the frame. Zero set the micrometer with this knob whenever the anvil is interchanged.
60 degree V-Anvil and Conical Spindle are made of high-grade special steel, hardened and precision ground.
Furnished complete with fitted carrying case.
