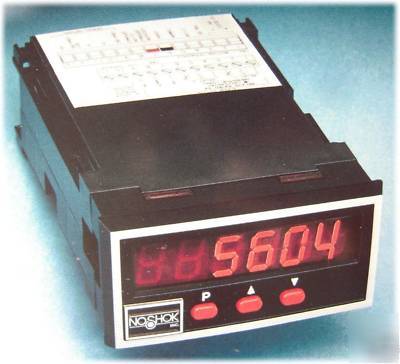

Noshok smart system digital indicator - 1915-1-014

NOSHOK Smart System, Microprocessor Based Digital Indicators accept a variety of standard process signals and precisely scale them into any desired unit of measurement. The full 6 digit display accommodates virtually any engineering unit and holds large totalization values. State of the art digital circuitry eliminates most errors due to drift.
* Power Requirements: 110 VAC
* Pressure/process display: 6 digit, 7 segment, 0.56" tall LED (minus sign for negative value)
* Resolution: 40,000 count measurement resolution, scalable to 99999
* Controls: Three front panel push buttons for indicator setup, controlling programmable functions and resetting stored values
* DIN standard bezel: 1.89" (48mm) x 3.78" (96mm)
* Input signal: 1915 frequency - 50 KHz, 50% duty cycle
* Input impedence: 10 ohms, 0.2 VDC @ 20 mA
* Transducer power supply: 18 VDC, 60 mA regulated
* Electrical connection: Removable terminal blocks
* Memory: Non-volatile E2 Prom; will hold setup data 10 years without power
* Accuracy: 0.02% full scale, 1 digit
* Reading rate: 2.5 readings per second
* Factory scaled and calibrated
* NEMA 4X/IP65 sealed front bezel
* Built-in transducer power supply
* Easy menu driven programming
* Front panel push button programming with lockout menu
* Accepts standard process signals
